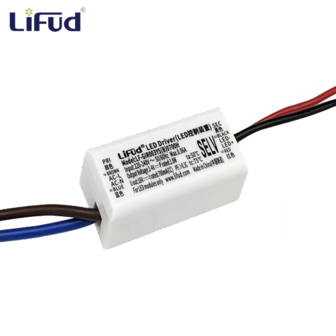

Lifud driver | Constant Current | Compact Non Dimmable | Fixed Current | Slim | 3W, 4W, 5W, 7W | 220-240V | 30-40V, 5V-10V | Low PF
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Low PF (Build-in) |
| Model |
LF-GIR007YS(B) |
| Max Output |
Options: 3W, 4W, 5W, 6W, 7W |
| Dim. Functions |
Non Dimmable |
| Input Voltage |
220- 240V |
| Output Voltage |
See below |
| Output Current |
3W: 70mA (30V-40V) |
| |
4W: 110mA (30V-40V) 350mA (5V-10V) |
| |
5W: 135mA (30V-40V) 500mA (5V-10V) |
| |
6W: 160mA (30V-40V) 600mA (5V-10V) |
| |
7W: 180mA (30V-40V) 700mA (5V-10V) |
| Efficiency+ PF (Typical) 230Vac |
3W: 68% (30V-40V), PF: 0,40 |
| |
4W: 77%, PF: 0,43 (30V-40V) 71% PF: 0,40(5V-10V) |
| |
5W: 78% PF: 0,43 (30V-40V) 74% PF: 0,45 (5V-10V) |
| |
6W: 80% PF: 0,45 (30V-40V) 74% PF: 0,45 (5V-10V) |
| |
7W: 81% PF: 0,47 (30V-40V) 74% PF: 0,45 (5V-10V) |
| Working Temp. |
-30℃~+50℃ |
| Dimensions |
49.03*24.03*21.5 mm |
| Certificates |
CB, CE, RCM, CCC, SAA |
| Warranty |
3,4,5 Years (Depends on type) |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
